DETAILS

• Platform

  Between
• Model Name

  Trail 6 SMU
• Model Code

  C26651M SMU

FRAME KIT

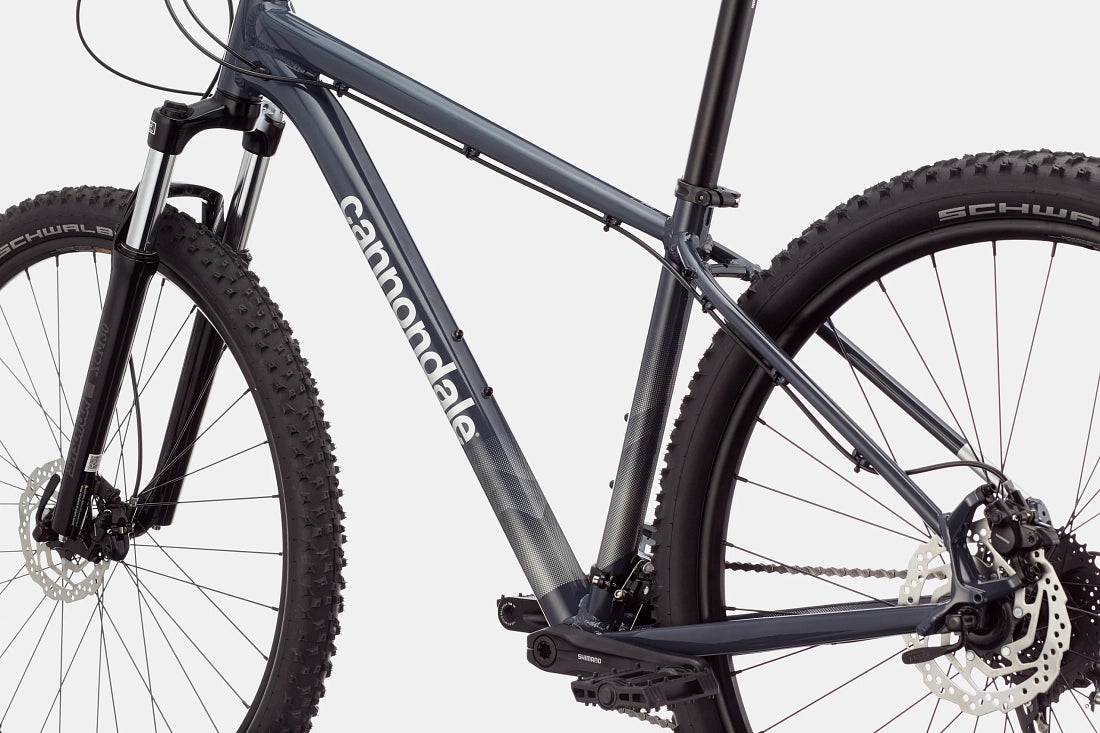

• Chassis
  SmartForm C3 alloy, SAVE, 1-1/8" head tube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73
  Fork
  SR Suntour XCM-RL, 100mm, block, spool, offset 42mm (27.5") offset 46mm (29")
  Headset
  Semi-integrated, 1-1/8"
  TRANSMISSION


• Exchange
  Shimano Alivio, Shadow SGS

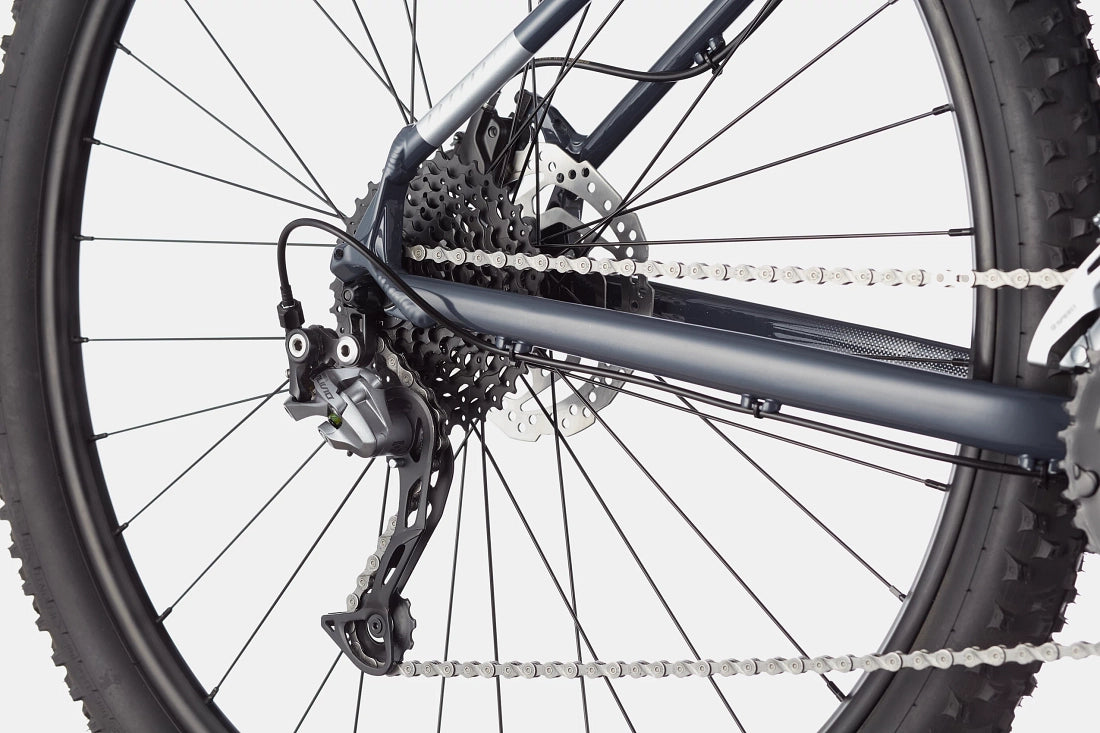

  Derailleur
  Shimano Altus, 34.9mm clamp
  Gear levers
  Shimano Alivio, 9 speeds
  Chain
  KMC X9, 9 speed

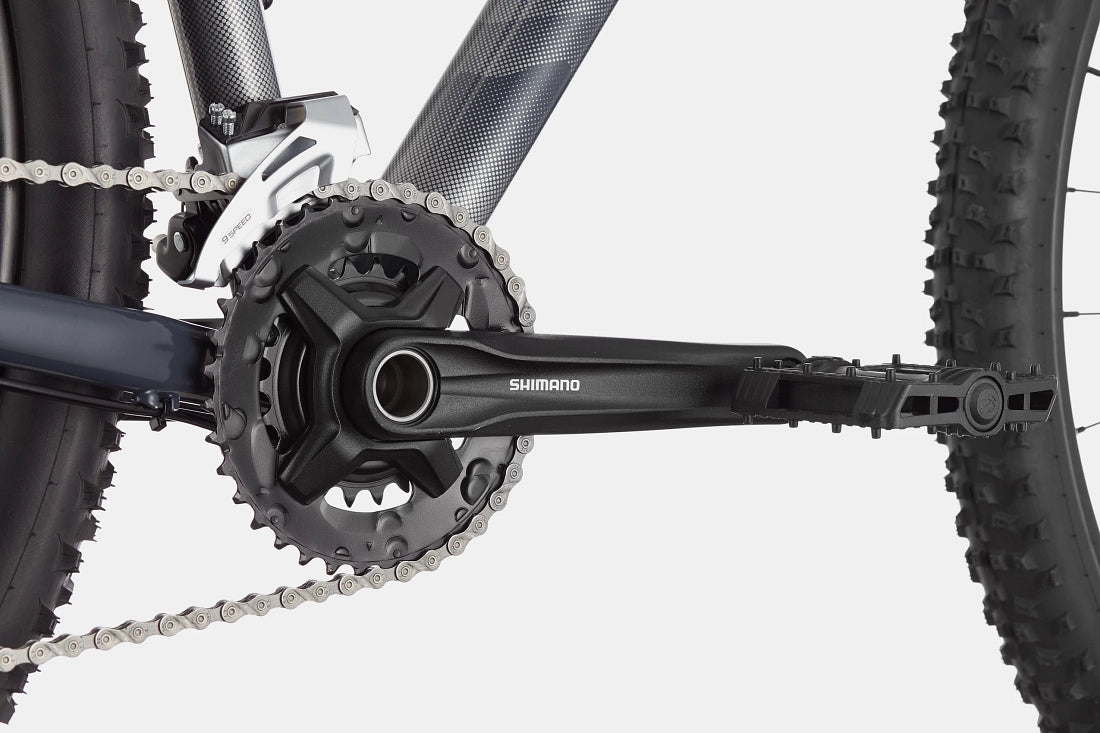

  Crankset
  Shimano MT210, 36/22
  Sprocket pack
  Shimano HG200, 11-36, 9 speed
  Central movement
  Sealed cartridge bearing, square taper

BRAKES

• Brakes
  Tektro M275 hydraulic disc, 160/160 mm rotors
  Brake levers
  Tektro hydraulic disc

WHEELS

• Front Hub
  Shimano HBTX 505
  Rear hub
  Shimano FH-TX505
  Brake type
  Disk
  Circles
  WTB SX19, 32h
  Rays
  Stainless steel, 14g
  Tire size
  2.25
  Wheel size
  29
  Tyres
  Schwalbe Rocket Rick, 29x2.25" (27.5x2.25" - XS, SM), K-Guard
  Front tyre
  Schwalbe Rocket Rick, 29x2.25" (27.5x2.25" - XS, SM), K-Guard
  Rear tire
  Schwalbe Rocket Rick, 29x2.25" (27.5x2.25" - XS, SM), K-Guard

COMPONENTS

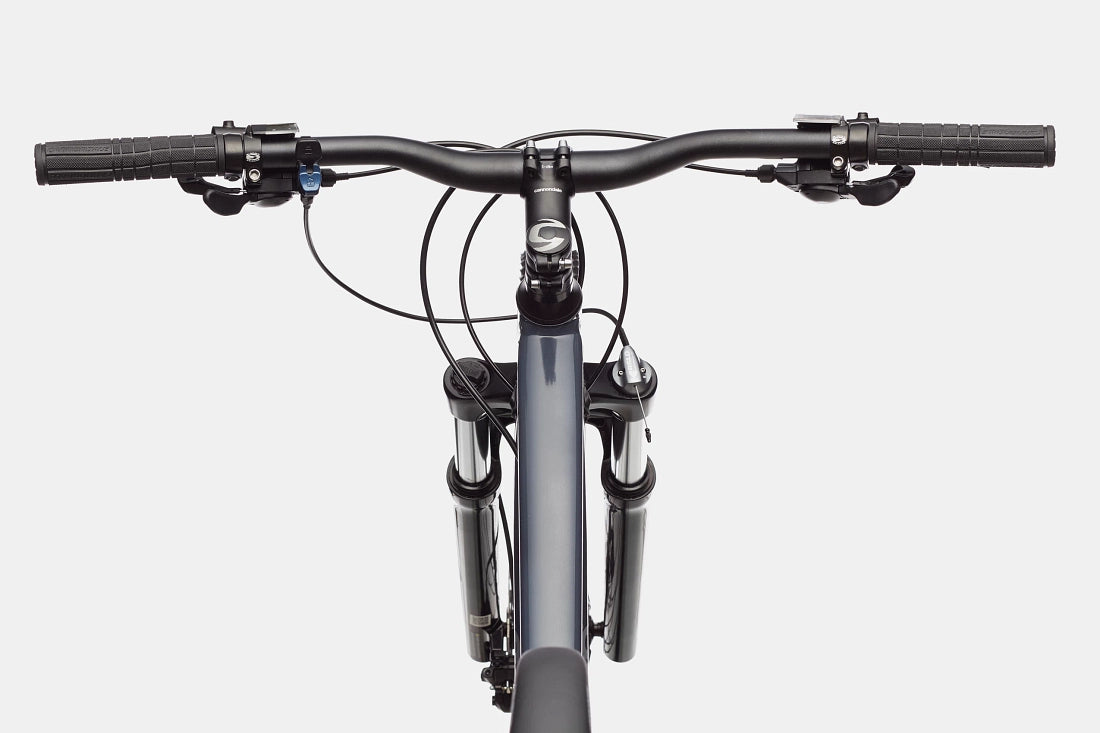

• Handlebar
  Cannondale riser, 6061 alloy, 25mm rise, 8° sweep, 6° rise, 720mm
  Handlebar stem
  League 6061, 31.8, 7th
  Handle
  Dual density Cannondale

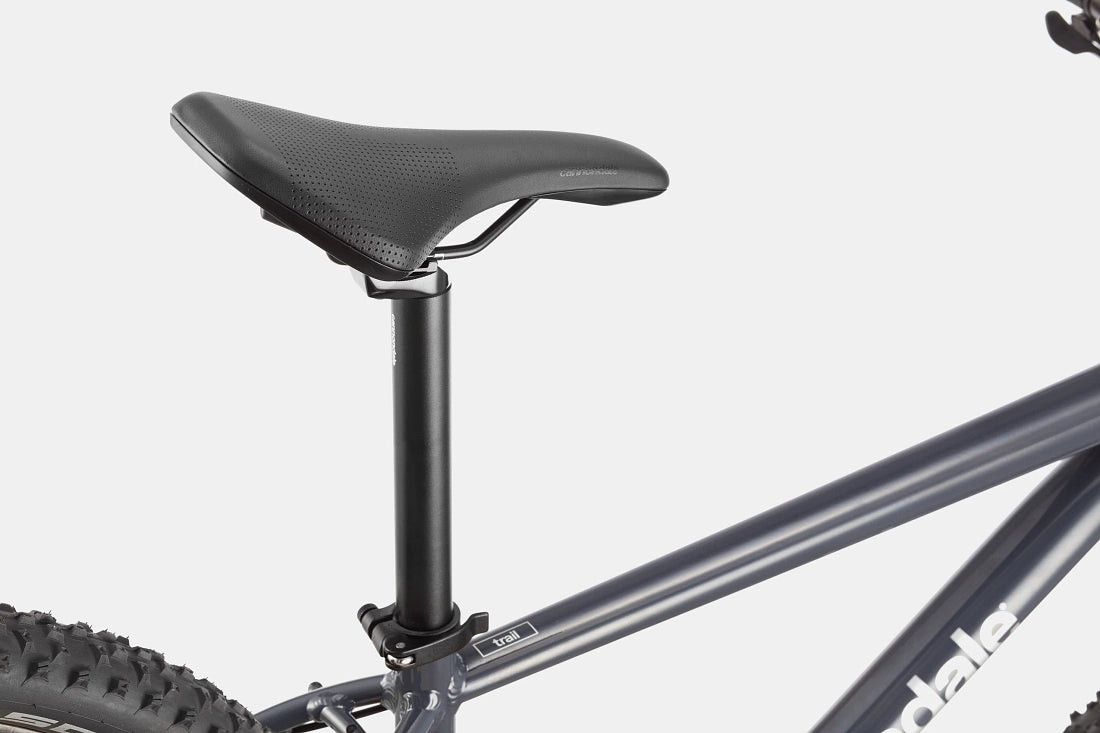

  Saddle
  Cannondale Stage 3
  Seatpost
  Cannondale 3, 6061 alloy, 31.6x350 mm (XS - SM), 400 mm (MD-XL)
